Sunday 23 March 2014

Planking Of The Hull Continued


This weekend I have toiled hard and made good progress. I spent 15 houres by planking the midships sections at port and starboard side. Furthermore I faired the stringers and bulkheads by using plane and belt sander at portside aft section from bulkhead G to stern.


Fixation of the planking scarf
Planking scarf after fairing
Working time been invested: 955 hours

Sunday 16 March 2014

Planking Of Hull Segment From Bulkhead C To G Prepared

Today I faired the stringers from bulkhead C to bulkhead G. The ship's side is just slight curved in this section, so this task was more easy than the same task between stem and bulkhead C.

Stringers and bulkheads after fairing

Prepared hull segment

Tuesday 11 March 2014

Stem Timber Attached

Last weekend I have prepared the stem timber from a 30 mm thick sapeli plank. Afterwards I screwed and glued it to the bow. Today I spent half an hour to fair it.




Working time been invested: 936 hours

Sunday 2 March 2014

Bow Prepared For Attaching The Stem Timber

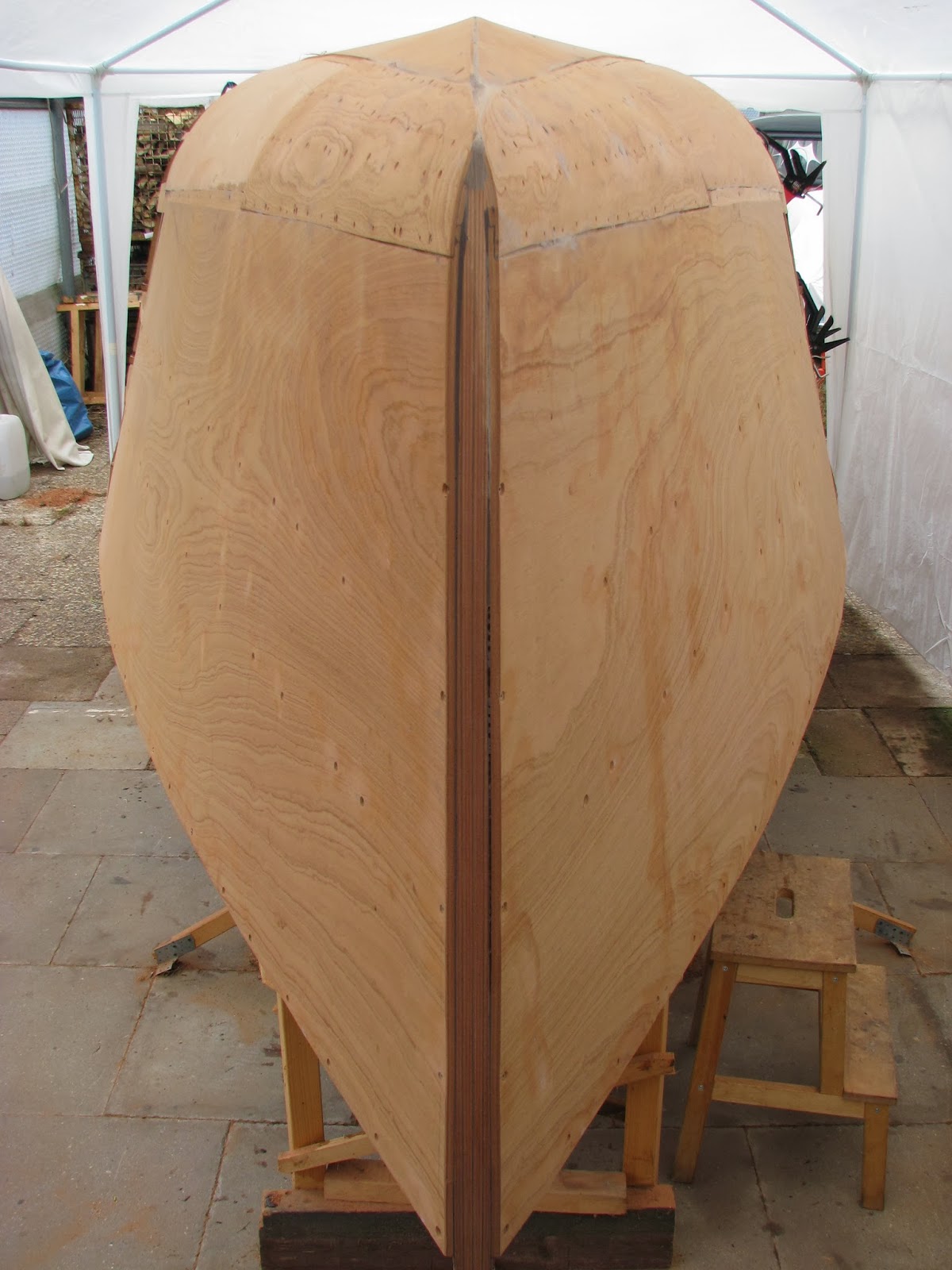

The outer plywood layers have been glued to the bow-side starboard and port-side radius segments. Most screws were removed after epoxy had set.
Today I faired the bow. Next step is attaching a 30 mm stem timber.
